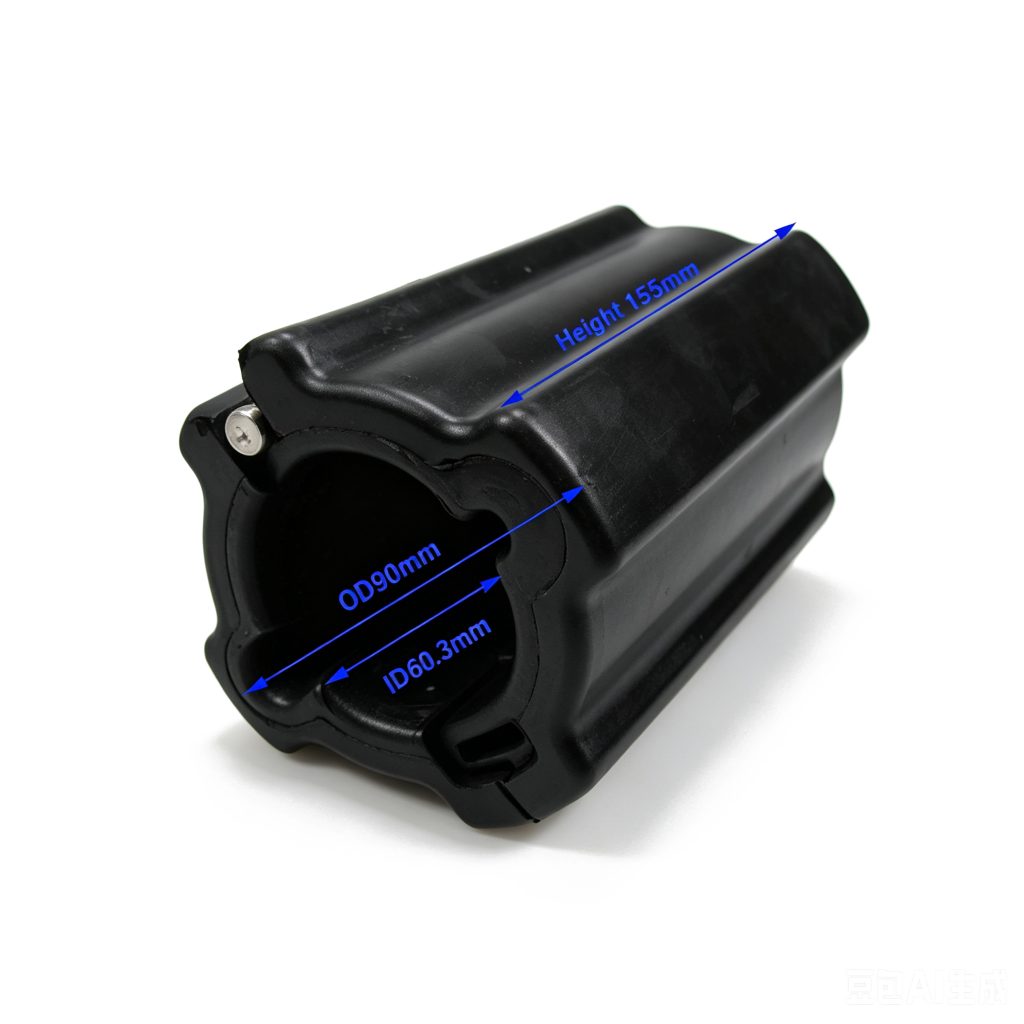

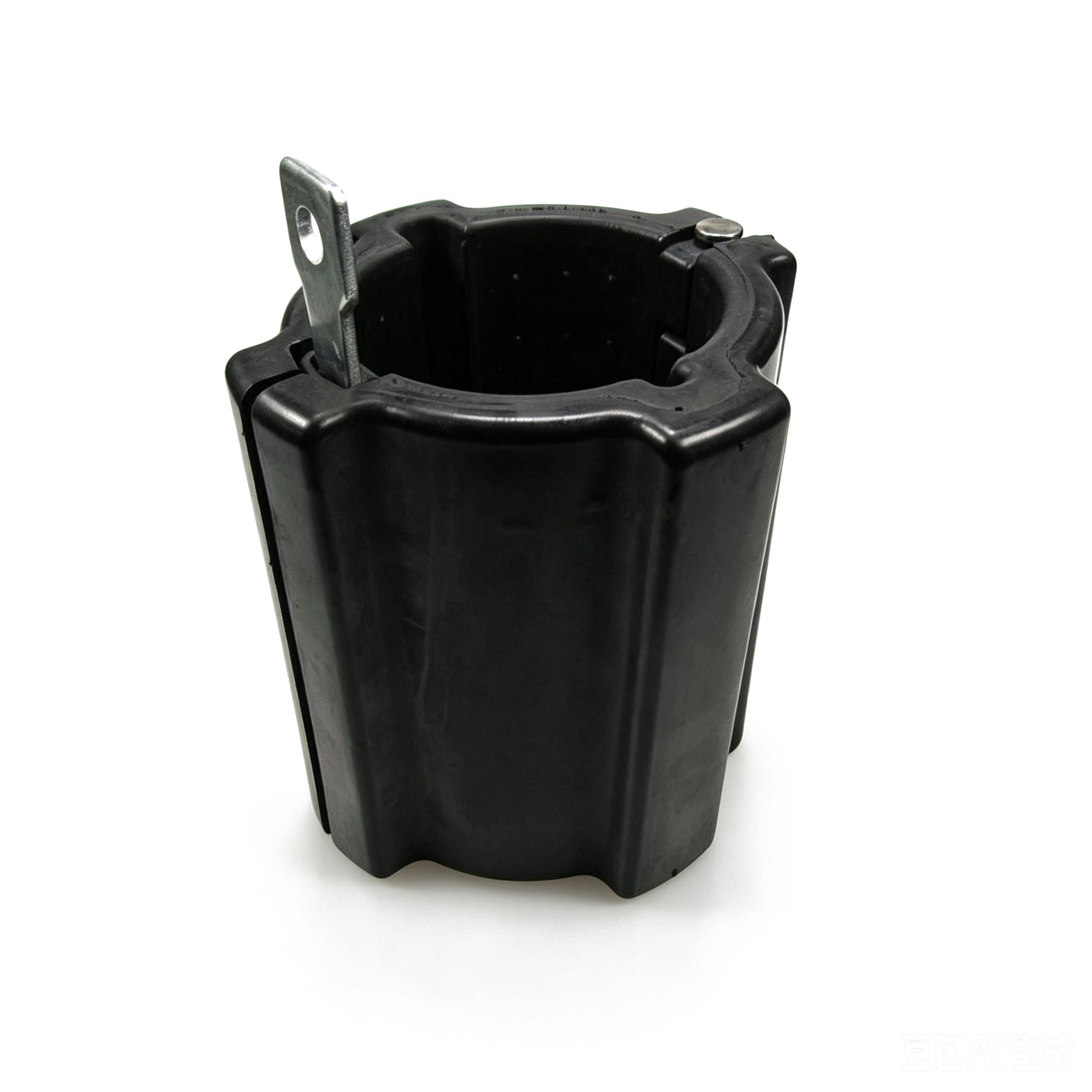

RUBBER CENTRALIZER

CONTACT NOW
PRODUCT DETAILS
Item Product Name Material DescriptionColor Hardness
(shore A)		 Service Temperature （℃）
1Rubber CentralizerNBR Rubber ID   2-3/8” *OD :110 mm *H155mm black 80±5 ≤120℃
2Rubber CentralizerNBR Rubber ID 2-3/8” *OD 140mm*H155mmblack 80±5 ≤120℃
3Rubber CentralizerNBR Rubber ID2-7/8”   *OD 110mm*H155mmblack80±5 ≤120℃
4Rubber CentralizerNBR Rubber ID 2-7/8” *OD 140mm*H155mmblack80±5 ≤120℃
5Rubber CentralizerNBR Rubber ID2-7/8”   *OD 165mm*H155mmblack80±5 ≤120℃
6Rubber CentralizerNBR Rubber ID3 1/2” *OD 140mm*H 155mmblack80±5 ≤120℃
  1. Application

Tubing centralizer is mainly used for oil pipe centralizing in oil well and deflecting well , protecting of the cable damage , help to fix the position of tubes in the deviated or straight well .

  1. Structure:

Tubing centralizer is mainly composed of tubing and rotating centralizer.

  1. Characteristics:

a) Make sure the oil tube in the middle and reduce eccentric wear.

b) Simple structure, flexible rotating, convenient usage , long service life ,small friction and good centralizing result.

c) Used in the packer ends to reduce friction of well wall to packer barrel and prolong service packer life.
